SOM9706 Module

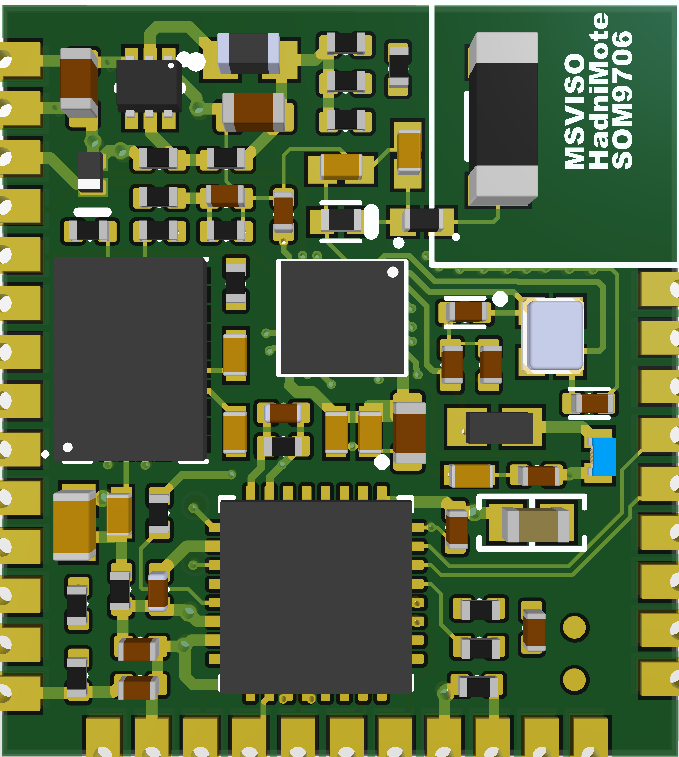

SOM9706 — HandiMote AIO Module
Microsense Vision SOM9706 is an ultra-compact (18×20 mm) sensing module that integrates motion, gesture, and wireless communication
into a single platform.
Designed for wearables, HMI systems, it combines a high-performance
HandiMote Controller SoC (MSV9706V) with a Nordic nRF52-series BLE solution and built-in Motion Sensor Fusion
capability to deliver precise real-time tracking with extremely low power consumption.
- AIO Compact Size — Combines MEMS Vision controller MSV9706V, motion sensor & 3DoF fusion, and BLE wireless module
- Powered by MSV9706V — Proprietary HandiMote controller optimized for gesture and motion algorithms
- Built-in BLE Antenna — Nordic nRF52-series wireless platform with stable low-latency data link
- Compact 18 × 20 mm — Ultra-small footprint for wearables and embedded systems
- Low-Power Architecture — Ideal for battery-powered or portable applications
- Sensor Fusion Engine — Integrates 6-axis motion sensing and advanced fusion algorithms
SOM9706 empowers developers to implement gesture-based control and spatial interaction in any product — from smart glasses to robots — with minimal integration effort and outstanding energy efficiency.
SOM9706 Technical Specifications
| Module Size | 18 mm × 20 mm |
|---|---|
| Core Controller | MSV9706V HandiMote SoC |
| Wireless Communication | Nordic nRF52-series BLE (built-in antenna) |
| Motion Sensor | 9-axis MEMS (3-axis gyro + 3-axis accelerometer & 3-axis magnetometer) |
| Sensor Fusion | On-chip Motion Fusion Engine for orientation and gesture tracking |
| Interfaces | I²C, SPI (configurable) |
| Operating Voltage | 2.8 – 3.6 V |
| Power Consumption | Ultra-low power design for wearable devices |
| Applications | Wearables, AR/VR Controllers, Robotics, Smart Glasses, IoT Devices |
